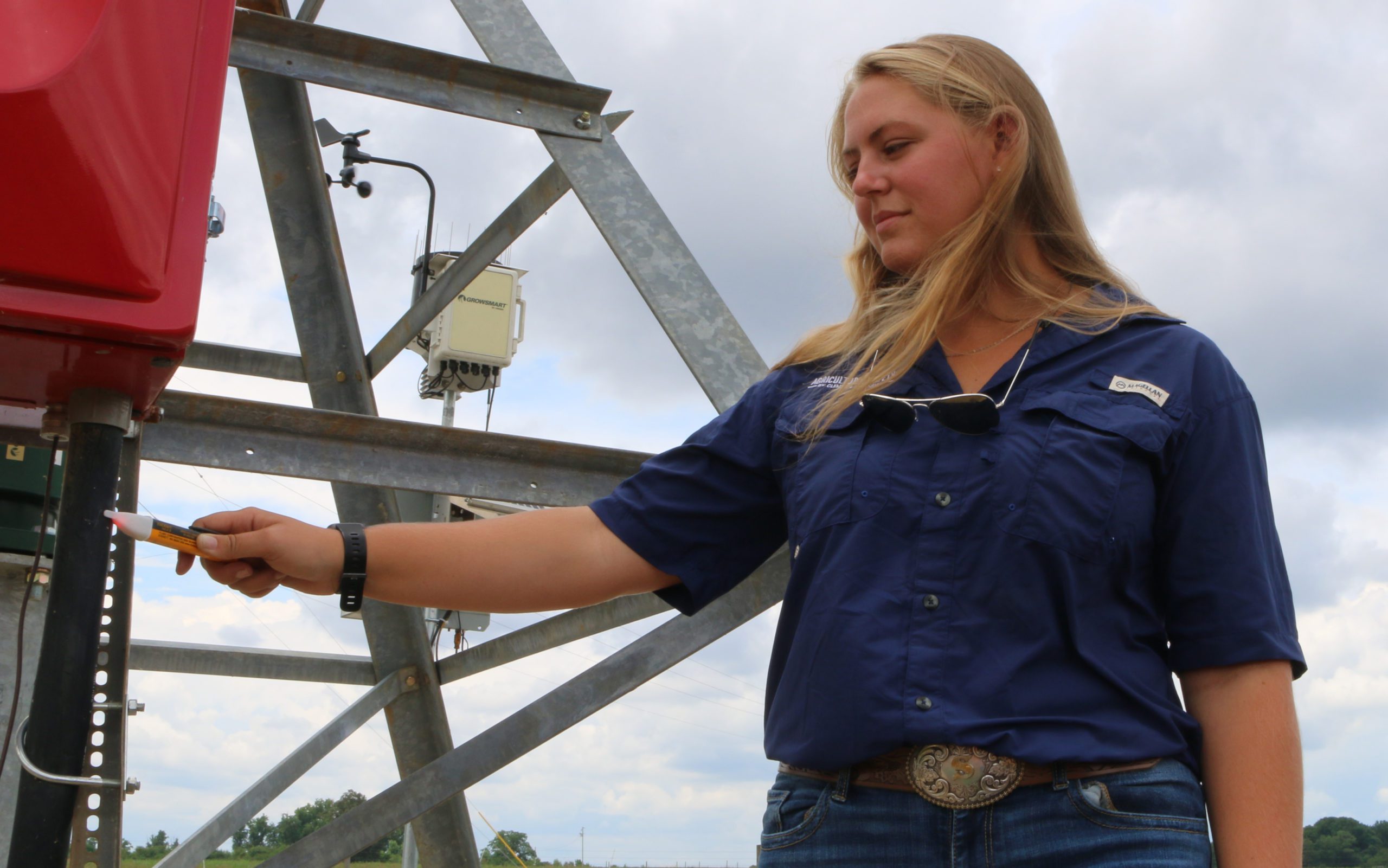

Shelley Lovern, Clemson master's student, tests a center pivot irrigation system at the Simpson REC with a voltmeter.
Clemson master's student Shelley Lovern uses a voltage tester to test a center pivot irrigation system at the Clemson Piedmont REC's Simpson Research Farm.
Download image

Test before you touch. It could save your life.
–       Charles Davis, Clemson Extension row crop agent for Calhoun and Richland Counties

It’s summer, farming is in full swing, as are thunderstorms and lightning.

For farmers who irrigate, Clemson Extension agents say spending a few extra bucks can help save a life or prevent permanent disabilities.

Lightning and thunderstorms typically occur during spring and summer months when farmers irrigate. Lighting can be deadly if farmers do not properly check their irrigation systems.

Chase Smoak
Chase Smoak

Chase Smoak, Clemson University Cooperative Extension Service horticulture agent for Lee and Sumter Counties, reports a local farmer was checking his center pivot irrigation system when a storm blew in. The farmer could have been electrocuted had he not spent a few seconds to take one important step.

“After the storm had passed, he noticed the pivot was not functioning correctly, so he used a voltage tester to test the pivot before opening the panel box,” Smoak said. “The pivot carried an electrical charge and the outcome could have been life-threatening had the farmer not checked the system.”

Charles Davis
Charles Davis

Voltage testers are used to check for voltage in wires or devices without users having to touch any electrical parts. Some testers cost less than $10. Charles Davis, Clemson Extension row crop agent for Calhoun and Richland Counties, said this is small price to pay for such an important tool.

“Lighting can strike an area before, after and in the absence of rain, so it is good to get in the habit of using a tester to check a system each time before touching it,” Davis said. “Test before you touch. It could save your life.”

Becky Davis
Becky Davis

After a storm has passed, people should check their pivot irrigation systems with voltage testers to avoid injury or possible death. They should also ensure ground rods are correctly installed and securely connected to the system.

The Clemson Extension Ag Safety and Water Resources Program team is mailing noncontact voltage testers to a list of South Carolina farmers with center pivot irrigation systems. Water Resources team member Becky Davis said irrigators who don’t get a voltage tester can contact her at (803) 245-2661 or rwllms@clemson.edu and have their name added to the list.

“A voltage tester is an important tool everyone irrigating with center pivots should have on-hand,” Davis said. “But it’s a tool that can give you a false sense of security if not used properly. Always confirm the proper operation by first checking a known live circuit and by reading the manufacturer’s instructions to understand its limitations.”

An irrigation professional’s view

Mark Davis, owner/operator of Broadwater Irrigation in St. Matthews, South Carolina, has been working with irrigation systems since he graduated from Clemson in Agricultural Mechanization and Business in 2007. He said irrigation system operators must keep safety in mind.

“Operators shouldn’t get complacent,” he said. “They should always conduct safety checks, as well as use important safety measures when operating a system. This could mean the difference between life and death.”

Safety measures include checking to be sure the system is properly grounded and “backhanding” the pivots to prevent possible electrical shock.

Clemson undergraduate student Anna Moore checks to be sure a center pivot irrigation system at the Simpson Research Farm is properly grounded.
After using a voltage tester to check for possible electrical charges, Clemson undergraduate student Anna Moore checks to be sure the center pivot irrigation system at the Simpson Research Farm is properly grounded.

“When checking a system, it is best to touch the pivot with the back of the hand,” he said. “Backhanding a system means brushing the back of the hand against any irrigation metal structure before grasping it with their palms.

“If a metal pivot is energized and a person grasps it with their palm, the electrical current can cause their hand to clamp around it and the person most likely will be electrocuted.”

Other tips when working with irrigation systems include not wearing jewelry and not working alone: Always have someone with you or let someone know where you’re going. Wear rubber-soled boots and don’t get on your knees to check something low.

“I always squat so that my rubber soles are touching the ground,” he said. “The ground can accept an infinite amount of electricity, whereas the human body can’t.”

For more research-based tips, follow the Clemson University Agricultural Safety Program on its blog, Clemson Agricultural Safety, https://blogs.clemson.edu/agsafety/

From the weather desk

Melissa Griffin, assistant state climatologist with the South Carolina Department of Natural Resources, said people should wait 30 minutes after the last lightning strike before resuming activities outdoors. She offers some safety tips for anyone who works outside.

Melissa Griffin
Melissa Griffin

“Continually monitor the weather,” Griffin said. “Just because a day starts with clear, blue skies does not mean it will end that way. Thunderstorms can form rapidly during the summer and calm conditions can change quickly, especially during the afternoons.”

Lightning is hotter than the surface of the sun (more than 50,000°F) and very narrow — less than 1” wide. A typical lightning flash is about 30 million volts (30,000 amps), while a household current is 120 volts (15 amps). Energy released from a lightning flash is about 109 to 1010 Joules, which would light a 100-watt light bulb for about four months.

The Occupational Safety and Health Administration (OSHA) lists farming as an occupation where workers are at high risk of lightning-related exposure. To help ensure everyone’s safety when working outdoors, businesses must have lightning safety plans that include a written lightning safety protocol. This should:

  • Inform supervisors and workers to take action after hearing thunder, seeing lightning, or perceiving any other warning signs of approaching thunderstorms.
  • Indicate how workers are notified about lightning safety warnings.
  • Identify locations and requirements for safe shelters.
  • Indicate response times necessary for all workers to reach safe shelters.
  • Specify approaches for determining when to suspend outdoor work activities and when to resume outdoor work activities.
  • Account for the time required to evacuate customers and members of the public and the time needed for workers to reach safety.

This information should be posted at outdoor worksites and all employees should be trained to follow all safety procedures.

Finally, Griffin said everyone should be inside during a storm, but people who must be outside should know the location of the nearest shelter. She also advises people to avoid open areas such as fields, ditches and retention ponds, as well as not holding metal objects such as tools, rakes, shovels and pruners – anything that can transmit or conduct electricity.

It is best to postpone farming activities if possible.

“If bad weather is already in the area, consider putting off outdoor plans until another day or time when the weather is better,” she said. “Outdoor workers need to take lightning seriously and be prepared to react quickly to ensure their safety.”

-END-

Becky Davis, Clemson water resources agent, talks about the importance of using voltage testers to test irrigation systems.
Anna Moore, Clemson undergraduate student from Evergreen, South Carolina.
Anna Moore, Clemson undergraduate student in Agricultural Mechanization and Business from Evergreen, South Carolina.
Shelley Lovern, Clemson master's student in agriculture with a concentration ag system management, from Ft. Lawn, South Carolina.
Shelley Lovern, Clemson master’s student in Agriculture with a concentration Ag Systems Management, from Ft. Lawn, South Carolina.
Use voltage testers to test irrigation systems and check for electrical hazards.
After using a voltmeter and finding a system has no electrical charge, farmers using irrigation systems should ensure the system is properly grounded to prevent possible electrocution.
After using a voltage tester and finding a system has no electrical charge, farmers using irrigation systems should ensure the system is properly grounded to prevent possible electrocution.
